Four Degrees of Freedom Inertial Sensor


Electronics Sensor Product Number : ADIS16300



14-bit digital gyroscope with digital range scaling ±75°/sec, ±150°/sec, ±300°/sec settings Tri-axis, 14-bit digital accelerometer ±3 g measurement range 13-bit pitch and roll incline calculations 330 Hz bandwidth 150 ms start-up time Factory-calibrated sensitivity, bias, and axial alignment Digitally controlled bias calibration Digitally controlled sample rate, up to 819.2 SPS External clock input enables sample rates up to 1200 SPS Digitally controlled filtering Programmable condition monitoring Auxiliary digital input/output See data sheet for additional features

Digital Four Degrees of Freedom

Manufacturer's Description

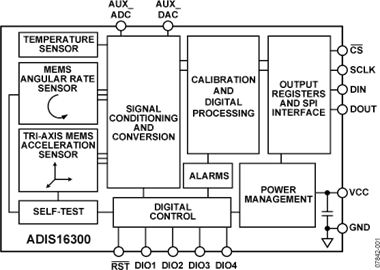

The ADIS16300 iSensor® is a complete inertial system that includes a yaw rate gyroscope and tri-axis accelerometer. Each sensor in the ADIS16300 combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear acceleration (gyro bias). As a result, each sensor has its own dynamic compensation for correction formulas that provide accurate sensor measurements over the specified power supply range of +4.75 V to +5.25 V. The ADIS16300 provides a simple, cost-effective method for integrating accurate, multi-axis, inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. An improved SPI interface and register structure provide faster data collection and configuration control. The ADIS16300, along with a flex interface, drops into current systems that use the ADIS1635x family, providing the opportunity to scale cost for systems that only require four degrees of freedom inertial sensing. This compact module is approximately 23 mm × 31 mm × 7.5 mm and provides a standard connector interface, which enables horizontal or vertical mounting.
